Square Post Options – 40 x 40 x 2 mm

Description

• AX20.001.010.A.SP

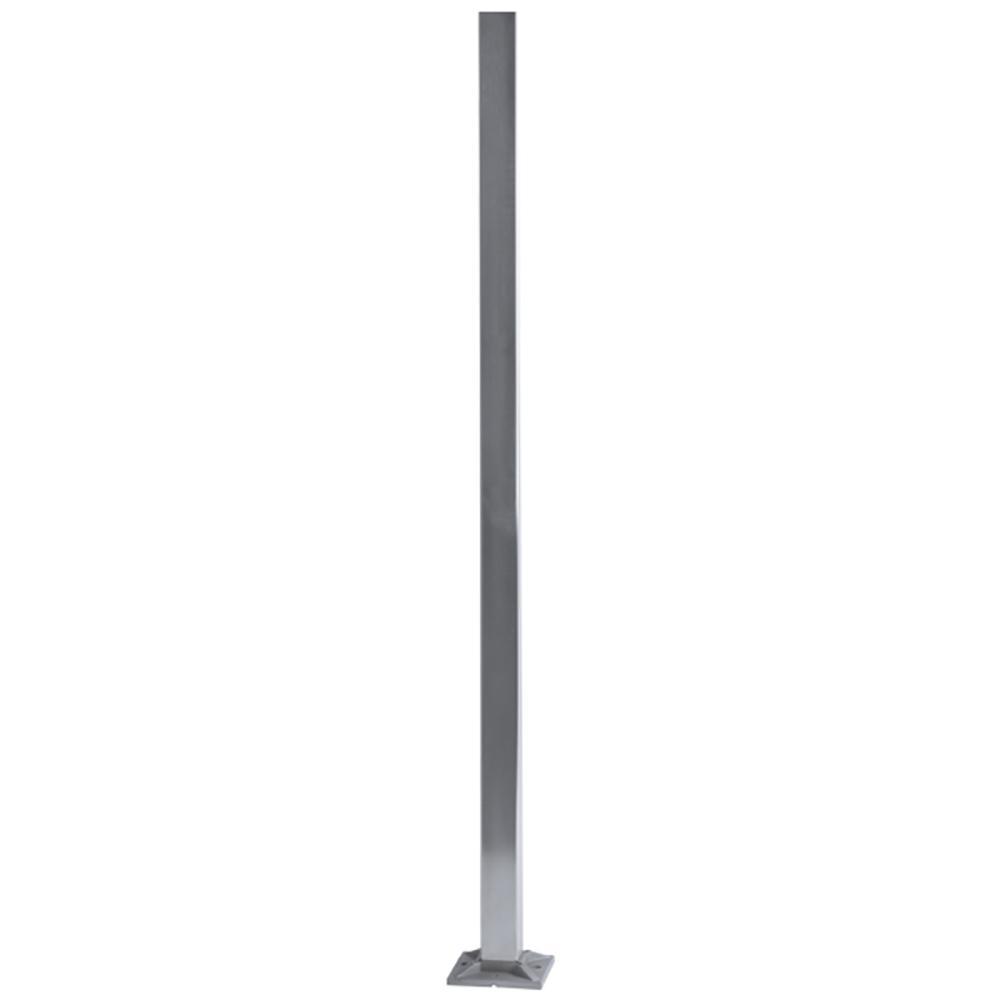

• Square Post – Floor Mounted
• 40 mm x 40 mm Square – 2mm wall thickness
• 1000 mm tall ( 39 – 3/8 in. )

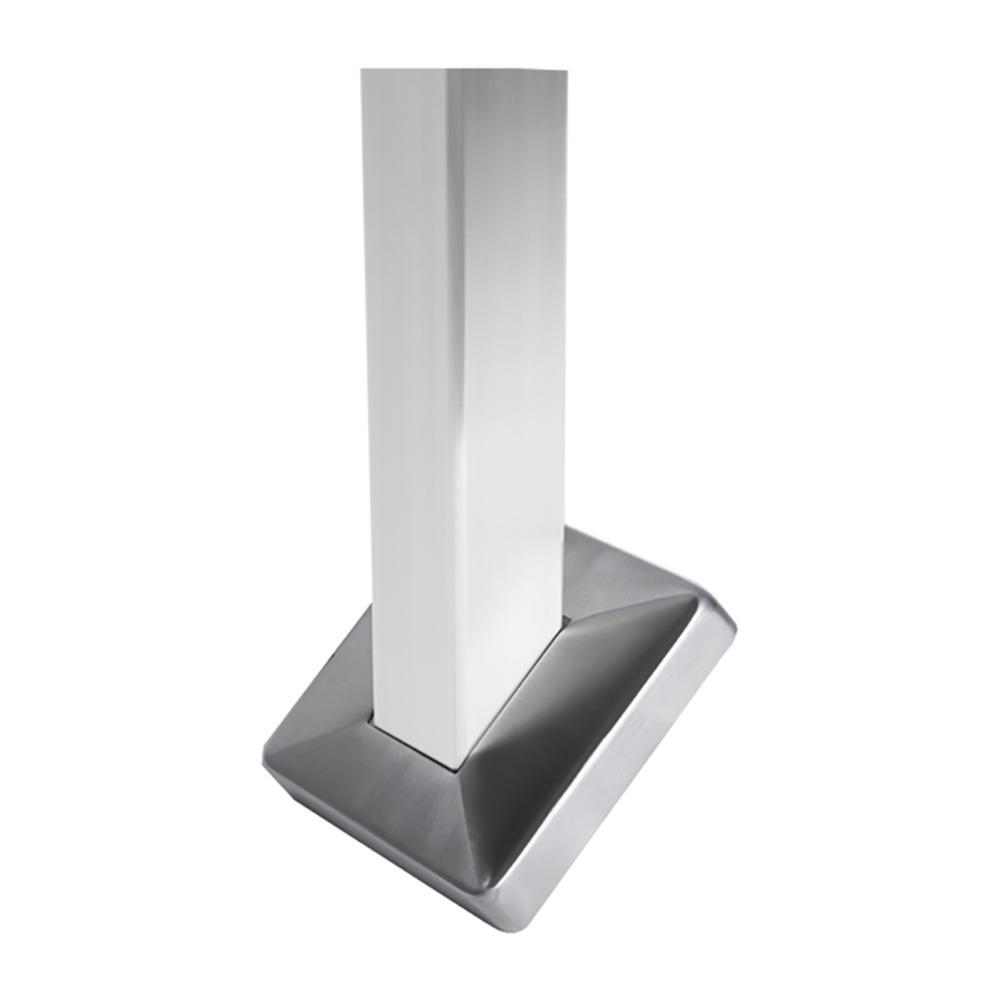

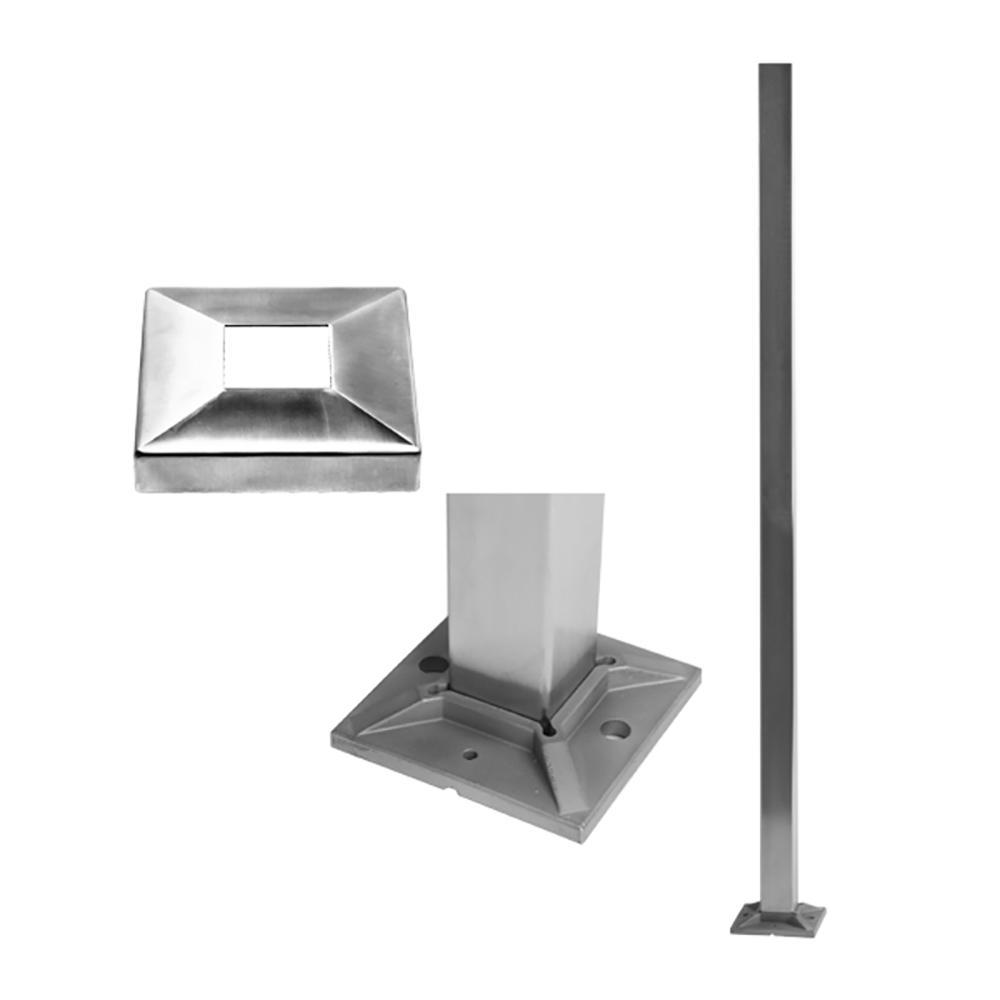

• Floor Mount with Flange Cover – 100 mm base ( 3 – 15/16″ in.) – Requires two screws Part # AX00.091.800.A.SP

Mounting Methods using Attached Flange

• Standard Floor Mount – Screws into the floor with the already attached bracket and is covered with the flange.

Mounting Methods using no Flange – Recommended to purchase the 42.4 mm handrail tube and use that as the posts. This saves you money overall as you don’t have to purchase the already welded flange.

• Level Floor Mount – No Flange – Purchase 40×40 mm square handrail tube. Purchase the Core Mount.
• Angled Floor Mount – Purchase 40×40 mm square handrail tube. Purchase the Core Mount and Angled Flange Cover.
• Side / Wall Mount – Purchase 40×40 mm square handrail tube. Purchase the Wall Mount kit. Also purchase flat or round end caps for the bottom of the post.
